Triple Axle Flatbed Trailer For Sale
Lead Time:
30 daysProduct Orgin:
ChinaBrand:
SUNSKY brandShipping Port:
Any Port Of ChinaPayment:
T/T,L/C At SightMarket Price:
$20000Color:
white
-
Whatsapp /VIBER :
8613666007515 -
Email:
sunskytrailers@gmail.com

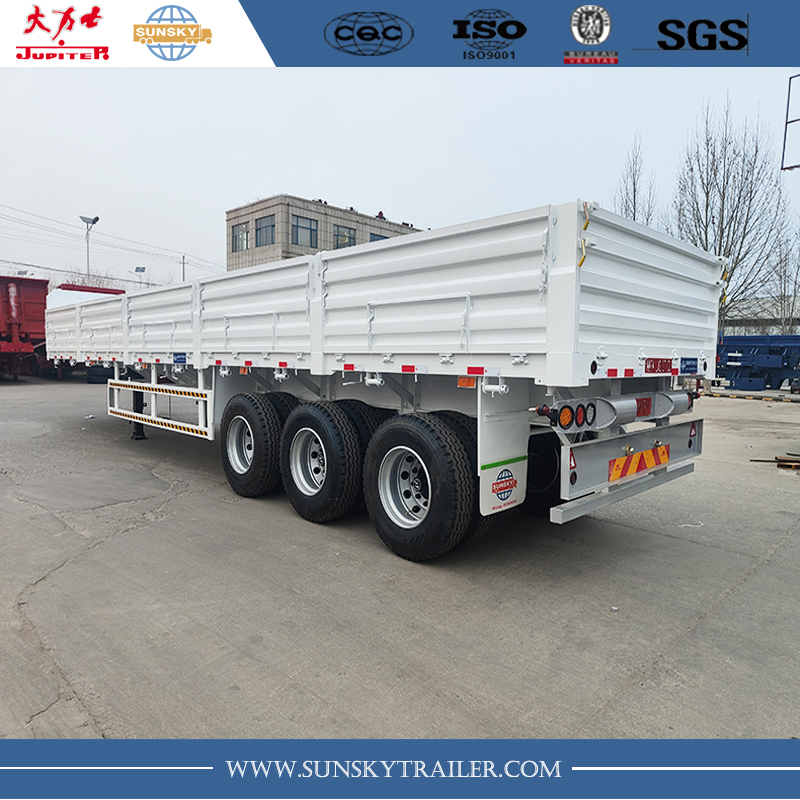

Triple axle flatbed trailer is redesigned on the basis of skeleton car with frame and platform panel installed. We can set the height of the fence according to customer customization, and the small door is designed to transport grain, and can be designed as five or six doors. The railings can be divided into horizontal stripes and vertical stripes. sunskytrailer railing semi-trailers are very popular in Zimbabwe and Zambia.
SPECIFICATION
40FT low side semi trailer
Feature:
Carry 1X20FT、1X40FT、or 2X20FT containerCarry bulk cargo
Dimension(L*W*H):
12420*2590*2700mm
Height of side wall:
800 mm
Thickness of side wall:
3 mm
Main frame:
Heavy duty and extra durability design;Opting for hightensible low carbon alloy Q345B steel ; I beam welded byautomotive arc-submerge process
Model:
XMS9380TP
No. of axle:
3
Payload(kgs):
50000
Tare weight(kgs):
8000
Kingpin:
Bolt-in type 2”
Landing gear:
Two-speed manual operation 19”
Tire size:
315/80R22.5 (13 sets)
Rim size:
9.00*22.5(13 sets)
Axle:
3-Axle,13 Tons
Suspension：
Spring suspension with 8pcs of leafspring
Brake system:
Dual line with Re-6 emergency relay valve,T30/30 airchamber, 46L air tank
Electric system:
One unit of 24V 7-pin ISO standard socket,with brakelight，turn light，reverse light,side light,reflector，foglight; one set of 6-pin standard cable
Container locks：
12(for 1X20GP,2x20GP,1X40HQ)
Painting:
Two coat of anti-corrosion prime; one coat of finishpainting
Accessory:
One tool box; one set of standard tool
Color:
White
Cover tent:
White color;16M*6M
requirements of side wall trailer for Zimbabwe customer
1. The fence is 800MM high and 3MM thick. Usually 1.5MM, the customer requires to increase the strength of the fence to achieve 3MM;
2. Small doors are opened on the fence, which can be specially customized according to the requirements of customers;
3. The rear anti-collision barrier is completely designed according to the customer's requirements;
4. According to customer requirements, 315/80R22.5 tires are used;
5.12 container locks;
6. The container can be placed without removing the fence;
Picture of side dumping trailer
Quality guarantee of SUNSKY Trailer
1. Two Year Free Warranty Term For the trailer chassis.
2. Free Parts Support Service.
3. All trailers able to design and custom-built as client's requirements.
Sunskytrailer will give you the best service and the best quality products, if you are also interested in our Triple axle flatbed trailer for sale, welcome to visit our factory and look forward to receiving your inquiries.
-
