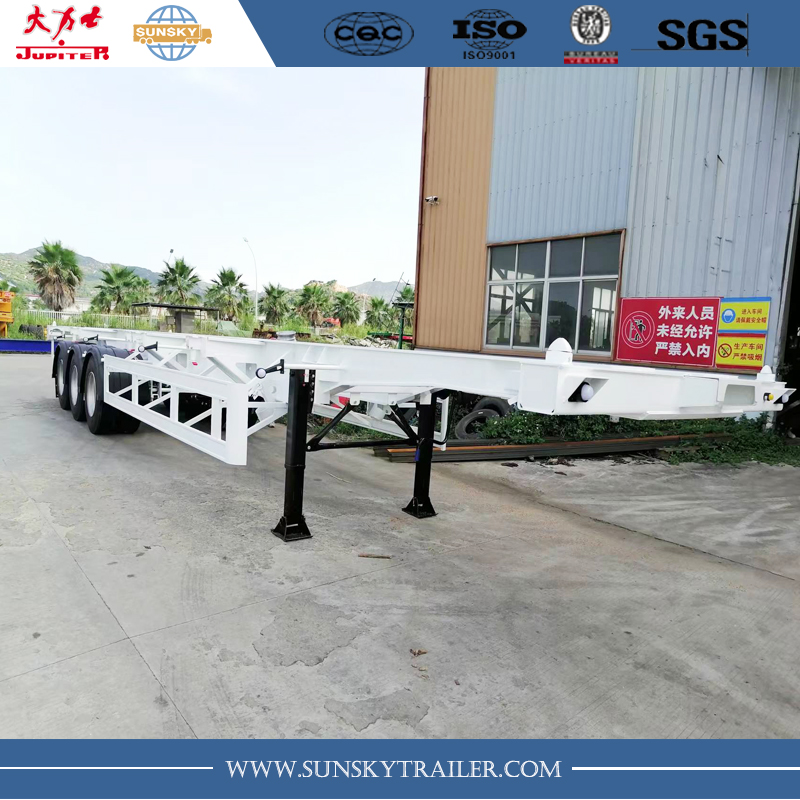

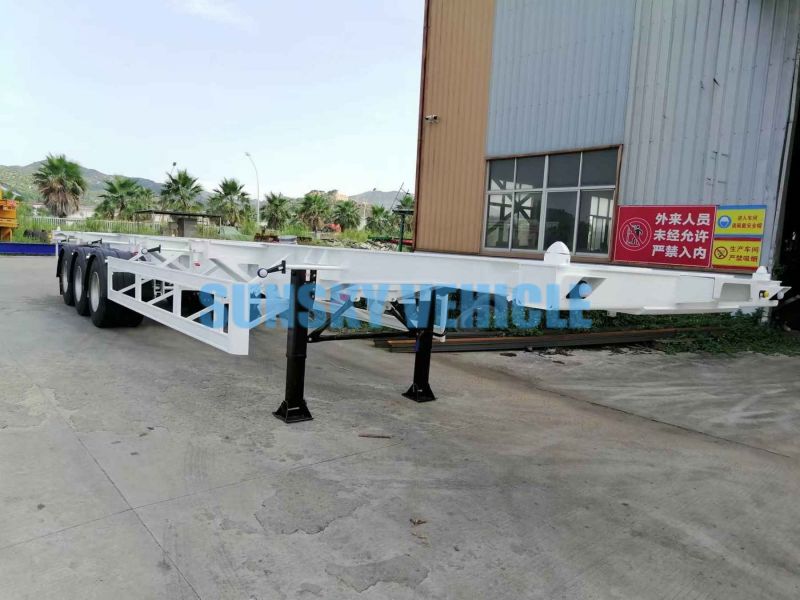

Container Hauler Trailer
Lead Time:
30 daysProduct Orgin:
ChinaBrand:
SUNSKY brandShipping Port:
Any Port Of ChinaPayment:
T/T; L/CPrice:
$16300Market Price:
$20000Color:
optional
-
Whatsapp /VIBER :
8613666007515 -
Email:
sunskytrailers@gmail.com
Normally, Container Hauler Trailer can be used to transport containers, such as in ships, ports, routes, highways, transfer stations, bridges, tunnels and other logistics systems, and can also be used to transport dangerous goods tanks. For the skeleton semi-trailer, whether it is a container or a dangerous goods tank, it belongs to the category of cargo, and only the vehicle skeleton belongs to the body structure.
Shipping Container Trailer Parameters
40FT skeleton semi trailer
Feature:
Carry 1X20FT 、1X40FT 、or 2X20FT container
Dimension(L*W*H):
12420*2480*1540mm
Main frame:
Heavy duty and extra durability design; Opting for high tensible low carbon alloy Q345B steel; I beam welded by automotive arc-submerge process
Model:
SS9380TJZP
No. of axle:
3
Payload(kgs):
40000
Tare weight(kgs):
5600
Kingpin:
Bolt-in type 3.5” or 2”
Landing gear:
Two-speed manual operation 19”
Tire size:
12R22.5 ( 13 sets)
Rim size:
9.00*22.5( 13 sets)
Axle:
3 Axle, 13 Tons
Suspension
Spring suspension with 8pcs of leaf spring
Brake system:
Dual line with Re-6 emergency relay valve, T30/30 air chamber, 46L air tank
Electric system:
One unit of 24V 7-pin ISO standard socket; with brake light, turn light, reverse light, side light, reflector, fog light; one set of 6-pin standard cable
Container locks
12(for 1x20GP,2X20GP, 1X40HQ)
Painting:
Two coat of anti-corrosion prime; one coat of finish painting
Accessory:
One tool box; one set of standard tool
1. The frames of this series of container transport semi-trailers are all shot blasted. The entire frame is assembled and welded on a special positioning stand. It has reasonable structure, high strength and beautiful appearance.
2. A container tightening device is installed on the frame, which can load two standard containers of 40 feet and 20 feet. The four container tightening devices at the front and rear ends are of fixed structure, and the middle container tightening device is of hideable structure. When loading containers, the intermediate container locking device can be lowered below the level of the cargo platform as required.
3. Use mechanical bearing devices, mainly Baohua 12T, 20T; Fuhua 13T; JOST; and other types. Its function is to support the ground and bear the front load of the semi-trailer when the traction device is disengaged from the trailer. There are two types of support devices: single-action type and linkage type, which are mainly composed of support plate, screw transmission mechanism, reduction box and joystick. Suspension devices include single-axis suspension and double-axis suspension and three-axis suspension. The semi-trailer is equipped with two pairs of spare tire frames, which are installed on the left and right sides of the trailer frame, and are equipped with a spare tire lifter.
Shipping Container Trailer Maintenance
Cleaning and rust prevention: Regularly clean the body and chassis of the flatbed semi-trailer to prevent damage to the vehicle from dust, dirt and corrosion. When necessary, anti-rust treatment is carried out to prolong the service life of the vehicle.
Tire maintenance: keep the tires of the flatbed semi-trailer at proper pressure, and check the wear of the tires regularly. Rotate and replace tires as needed to ensure good handling and ride safety.
Lubrication and replacement fluid: Regularly check and replace the lubricating oil, coolant and other fluids of the flatbed semi-trailer. Ensure the normal operation of the lubrication system and cooling system to prevent overheating or damage to components.
Maintenance records: Keep detailed maintenance records, including maintenance dates, maintenance items and replaced parts and other information. This helps to track maintenance history and timely maintenance planning.
Whether you are a transportation industry professional or a business owner, sunskytrailer will be your partner. We are committed to providing excellent customer service and reliable semi-trailer products to meet your transportation needs, welcome to visit our factory, more please contact us.
