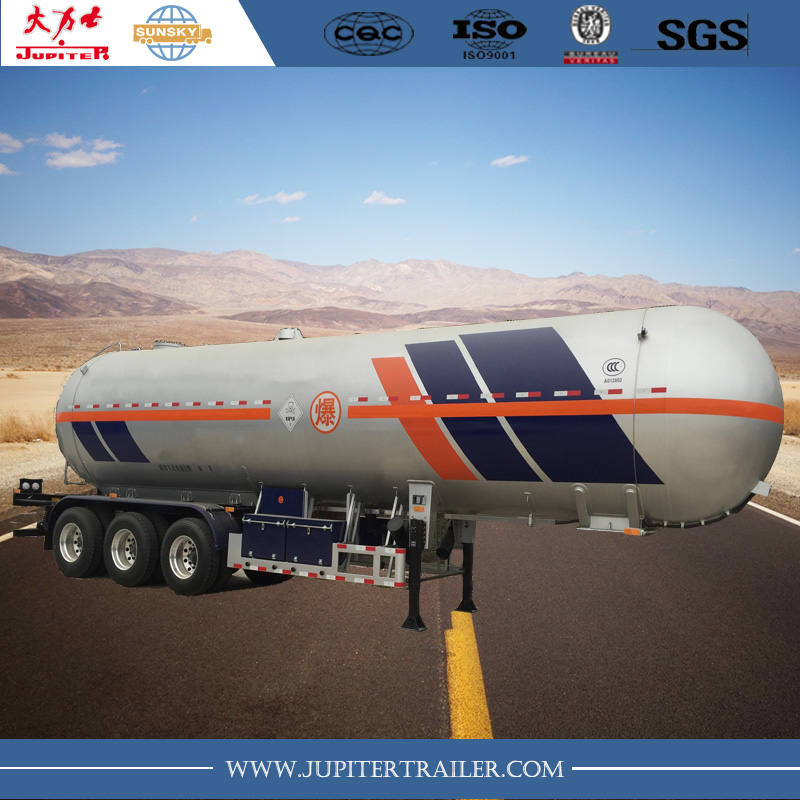

57 CBM 3 axles LPG Tank Semi Trailer in European Standard

Features

1.European design in LPG tank, more than 10 years experience in semi-trailer make a good property.

2.Exported to more than 32 countries，solve the requirement of transport trailer,and received good comment from customers and dealers.

3.Standard design in LPG tank, more high use value and cheap price，also can design according to your requirement.

4.Solve all kinds of requirement in tank trailer,like fuel tank,water tank,bulk tank etc.

Specification

---

57 CBM LPG 3 axles Tank Semi Trailer
Brand Name	SUNSKY
Place of Origin	China
Color	Any color will be available
Payload	24800 kg
Tare Weight	15200 kg
Wheel Base	7970+1310+1310  (mm)
Rim & Tyres	Alcoa Wheel and Michelin tires 6 PCS
Axle Brand	13T
No. Of the Axles	3
Axle-load	24000 kg
Pieces of leaf-spring	10/10/10
Suspension	Heavy duty leaf spring suspension
Departure Angle	22
Front/Rear Overhang	1205 mm
Dimensions	12965×2500X3990 (mm)
Tanker size	12715mmx2499mm
Main Beam	Automatic submerged arc welded Main beams Q370R through cross beams Q235 Body material Q235B manganese plates, automatic submerged arc welded
Brake System	Automatic air brakes Double pipe line air brake, front two axle is 30 air chamber, rear axle is 30/30 air chamber.
Accessory	One tooling boxes , Two spare tire carrier, Two fire extinguisher
Tanker side thickness	12 mm
Electrical System	24V, 7core socket, lights according to European standards.
Tool Box	1 box of standard tools
material	Q370R
Standard  Configurations	Safety valve cover, single-fluid two-valve boxes, legs, traction pins, liquid level gauge, pressure gauge, thermometer, emergency cut off valves, fire extinguishers, fire star cover, anti-static grounding tape, fence, tire fenders
Others	Filling medium: liquefied petroleum gas (propane); design pressure 1.71Mpa, design temperature 50°C, Filling factor: 0.42t/m3, corrosion margin: 1mm
Standard	AD-MERKBLÄTTER 2000 (ADM) Steel Pressure Vessels, Pressure Vessel Safety technical monitoring procedures, liquefied gas tanker safety inspection

Details

---
