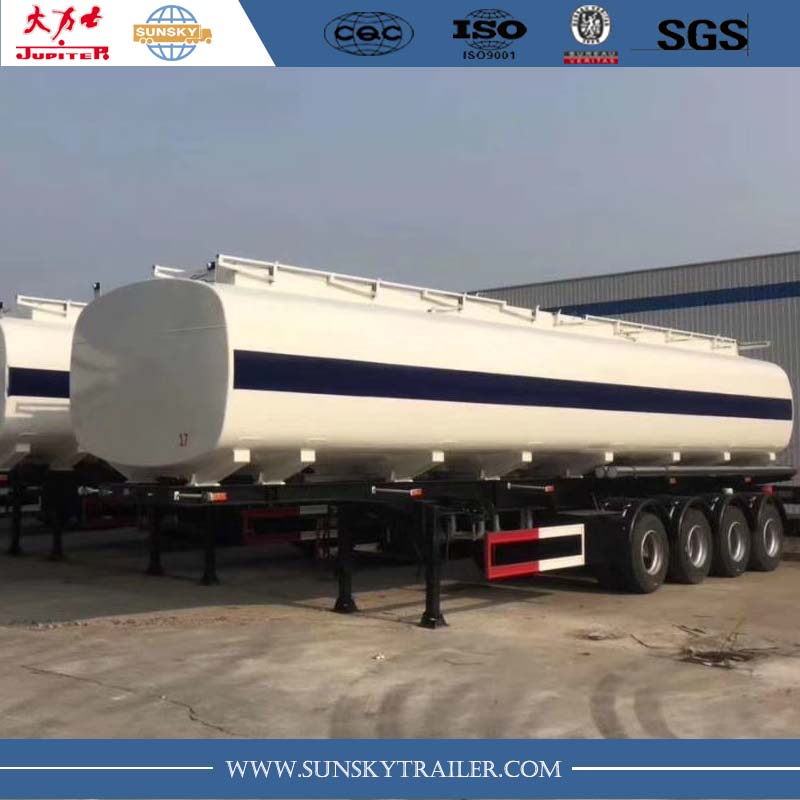

50000 liters 4 Axle Tanker Semi-trailer For Oil Transport

50,000L 3-axle Fuel Tanker Semi-trailer

Feature:

Carry Fuel, Oil, petroleum

Dimension(L*W*H):

12500*2500*3750 mm (50,000L)

Model

XM9500GRY

Material:

Carbon Steel

Compartment:

3 to 8

Capacity(kgs):

50,000L

Tare weight(kgs):

12,200kgs

Kingpin

JOST BRAND bolt-in 3.5”

Landing gear

JOST BRAND 19”

Tire size

Triangle brand 12R22.5（17 sets）

Rim size

9.00*22.5（17 sets）

Axle

Fuwa brand 13 Tons,3 pcs

Leafs spring

Steel suspension with 8pcs of leafs spring

Brake system

RE 6 relay valve

Manhole:

Aluminum alloy ø500mm(20”) manhole with aluminum alloy cover; with breather valve;

Discharge Valve

Aluminum alloy discharge valve with cover

Foot Valve

Pneumatic control DN80 aluminum alloy foot valves

Pneumatic Control system

1set Pneumatic Control combined switch

1unit emergency switch

Discharge Hose

2 units 3”×6M factory PVC hose with quick coupling on both ends

Vapor Recovery & Overfill system

Optional

Fire Extinguisher Carrier

2 units at the left of rear of tanker, include 2 units 8kg dry powder type fire extinguisher inside

Electric system:

One unit of 24V 7-pin ISO standard socket; with brake light, turn light, reverse light, side light, reflector, fog light; one set of 6-pin standard cable

Prime & Topcoat painting

S.A.2.5standard sandblasting ;Zinc-rich & Polyurethane painting

We can build the trailers according to customer’s design and requirement
