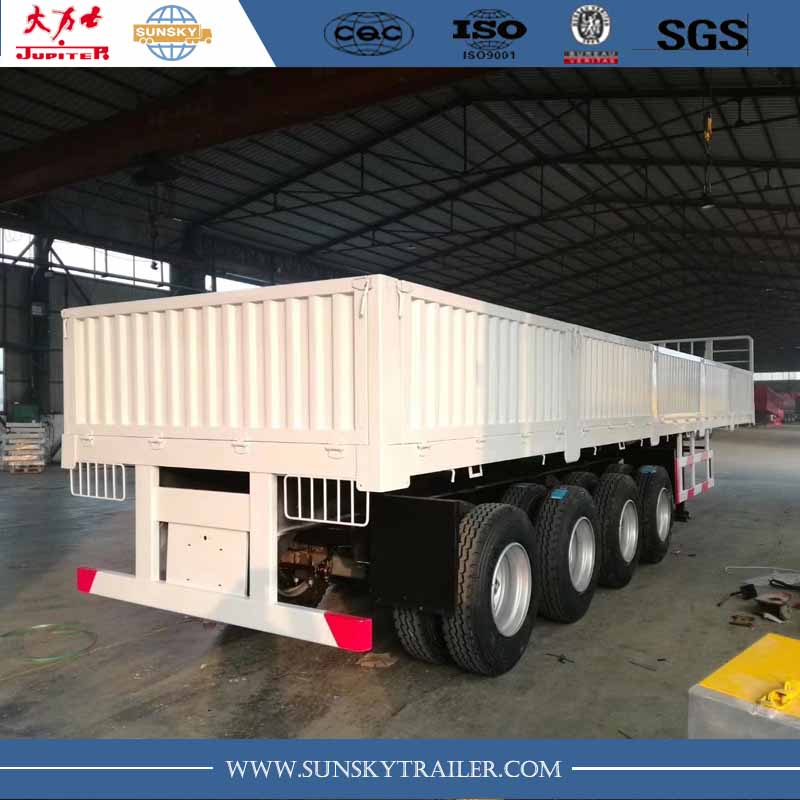

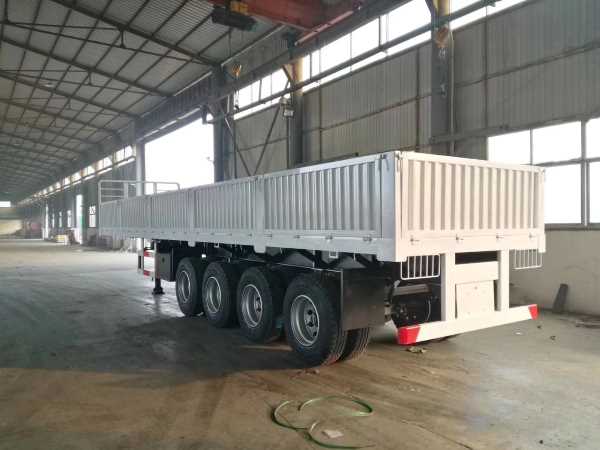

40FT 4 Axle Side Wall Trailer

40FT Side Wall semi trailer

Feature:

Carry 1X20FT、1X40FT、or 2X20FT container;

Carry Bulk cargo

Dimension(L*W*H):

12600*2500*2300mm

The Height of Wall

800mm

Main frame:

Heavy duty and extra durability design; Opting for high tensible low carbon alloy Q345B steel; I beam welded by automotive arc-submerge process

Model:

SS9402TJZW

SS9400TJZW

No. of axle:

4

3

Payload(kgs):

50000

40000

Tare weight(kgs):

8700

7800

Kingpin:

JOST brand bolt-in 2”

Landing gear:

JOST brand 19”

Tire size:

12R22.5

Rim size:

9.00*22.5

Axle:

FUWA brand 13 Tons

Suspension

Spring suspension / Airbag suspension

Brake system:

Dual line with WABCO brand Re-6 emergency relay valve, MBA brand T30/30 air chamber, 46L air tank

Electric system:

One unit of 24V 7-pin ISO standard socket; with brake light, turn light, reverse light, side light, reflector, fog light; one set of 6-pin standard cable

Container locks

12(for 1x20GP,2X20GP,1X40HQ)

Painting:

S.A.2.5standard sandblasting; Two coat of anti-corrosion prime; one coat of finish painting

Accessory:

One tool box; one set of standard tool

We can build the trailers according to customer’s design, requirement and budget.

Different specification cost different price.
