40FT 3-Axle Storehouse Semi-trailer
Lead Time:
30 DaysProduct Orgin:
ChinaBrand:
SUNSKY brandShipping Port:
Any Port Of ChinaPayment:
T/T; L/CPrice Range:
16000-20000/1$Color:
Optional
-
Whatsapp /VIBER :
8613666007515 -
Email:
sunskytrailers@gmail.com
Click here to contact us!
Heavy Duty 40FT 3 Axle Dropside/Storehouse Semi Trailer Parameters
Feature:Carry container and dry cargo
Dimension(L*W*H):12410*2480*2700
Main frame:Heavy duty and extra durability design; Opting for high tensile low carbon alloy Q345B steel; I beam welded by automotive arc-submerge process
The height of front wall:1.2 meter
The height of side wall：1 meter
Payload(kgs):40000
Appro.Tare weight(kgs):8300
Kingpin:bolt-in type 2”
Landing gear:19”
Tire size:315/80R22.5(13sets)
Rim size:9.00*22.5(13sets)
Axle:Original Fuwa brand 13Ton*3sets
Suspension：Germany type Spring Suspension
Brake system:Dual line with Re-6 emergency relay valve,T30/30 air chamber, 46L air tank
Electric system:One unit of 24V 7-pin ISO standard socket; with brake light, turn light, reverse light, side light, reflector, fog light; one set of 6-pin standard cable
Container locks:12(for 1x20GP,2X20GP,1X40HQ)
Painting:S.A.2.5 standard sandblasting; Two coat of anti-corrosion prime; With white color finish painting RAL6018
Accessory:One tool box; one set of standard tool; Two sets of spare wheel carrier.

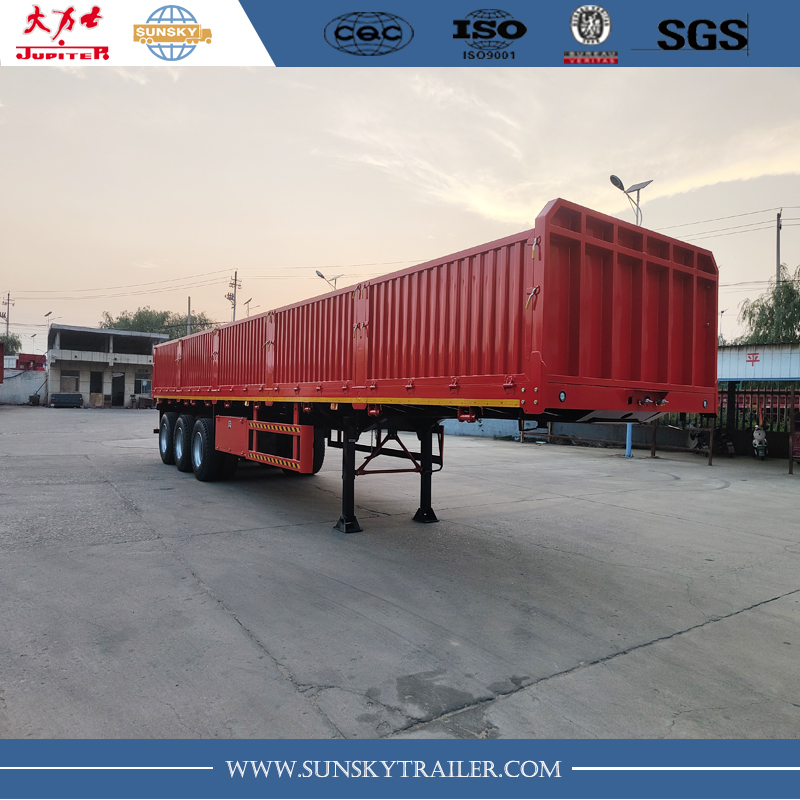

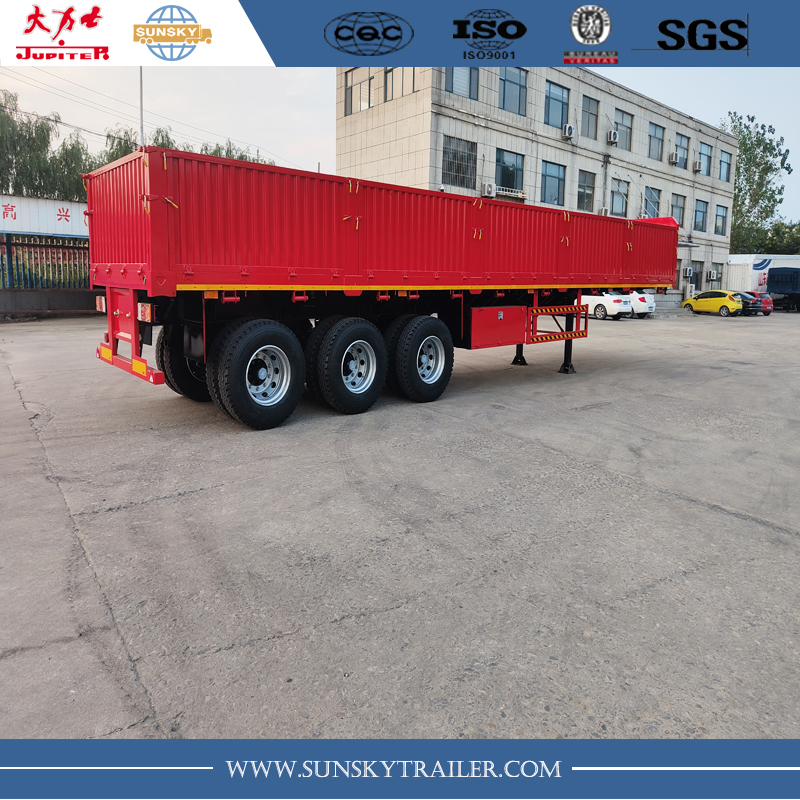

Heavy Duty 3 Axle Dropside Semi Trailer Pictures
Generally speaking, we offer four delivery options:
The first is through 40HQ or 45HC containers and directly packed by our professional packaging staff. We will provide packaging photos for your inspection.
The second type, through bulk carriers, is suitable for large and heavy cargoes whose single piece weight does not exceed 30T. We will spray wax on the surface of the semi-trailer to play a basic anti-corrosion role. When the trailer is secured to the boat, we cover it with a layer of waterproofing and tie it off with ropes.
The third type is a ro-ro ship specially used to transport vehicles and trailers; we will spray wax on the surface of the trailer before delivery.
The fourth type, frame cabinet, is specially used to transport goods with a length of no more than 11.8m.
When the trailer arrives at your country's port or destination, you can use the bill of lading we provide to pick up the goods. Under FOB conditions, you can ask your own freight forwarding company to do customs clearance and pick up the trailer from the port warehouse for you.
If you are interested in our 40T flatbed trailer with 1200mm side wall, we also produce other different types of semi-trailers and trucks, welcome to contact us!
-
