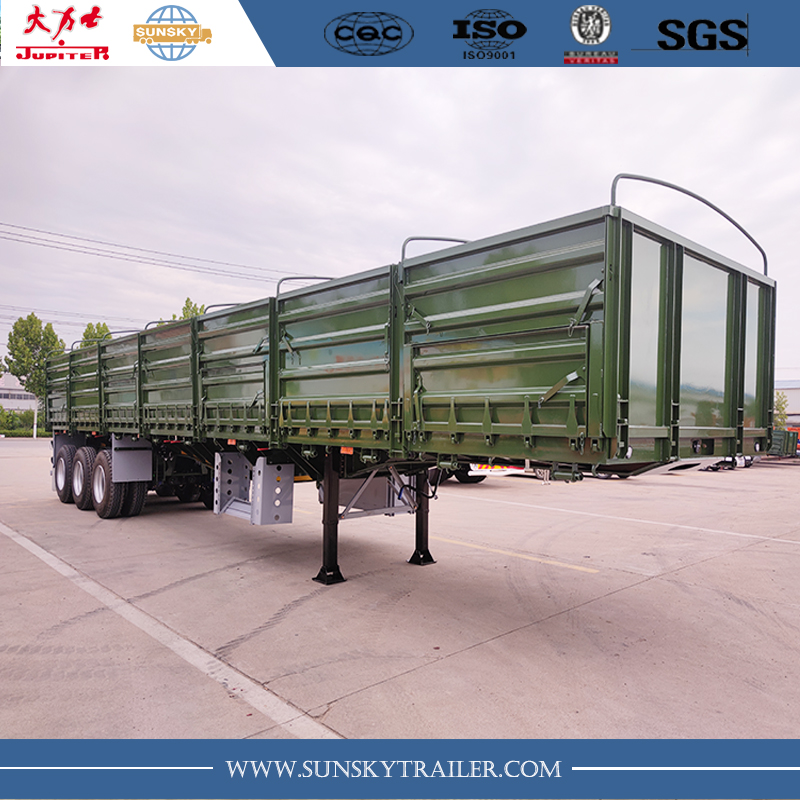

40 Ton Side Wall Trailers

40 Ton Side Wall Trailers are a commonly used type of semi-trailer for cargo transportation. It is characterized by openable side walls on both sides and at the rear to facilitate cargo loading and unloading. With its versatility and high efficiency, sideboard semi-trailers have become an ideal choice in the logistics and transportation industry. They are widely used in the transportation of various bulk goods such as building materials and agricultural products.

Features of 40 Ton Side Wall Trailers
13.5m Henred type Dropside Semi-trailer
Feature: Carry bulk cargo
Dimension(L*W*H): Approx.13500*2600*27000mm
Height of side wall 1200 mm,with grain windows
Main frame: Heavy duty and extra durability design; Opting for high tensible low carbon alloy Q345B steel; I beam welded by automatic arc-submerge process
Model: SS9380TJZP
No. of axle: 3
Payload(kgs): 50000
Tare weight(kgs): Approx.9000
Kingpin: Bolt-on type 2’’
Landing gear: Two-speed manual operation 19”
Tire size: 12R22.5 (12+1 sets)
Rim size: 9.00*22.5(12+1 sets)
Axle: 3 Axles, 13Tons
Suspension Spring suspension
Brake system: Dual line with Re-6 emergency relay valve, T30/30 air chamber, 46L air tank
Electric system: One unit of 24V 7-pin ISO standard socket; with brake light, turn light, reverse light, side light, reflector, fog light; one set of 6-pin standard cable
Painting: Two coat of anti-corrosion prime;One coat of finish painting.
Color: The chassis is black,and the side board is white.
Accessory: One tool box; one set of standard tool

40 Ton Side Wall Trailers for sale near me

40 Ton Side Wall Trailers for sale near me

40 Ton Side Wall Trailers for sale near me

40 Ton Side Wall Trailers for sale near me

Later maintenance
To ensure the long-term and efficient operation of the steeplechase semi-trailer, the following regular maintenance is recommended: sideboard inspection: Regularly check the flexibility of the steeplechase switch and the firmness of the fixtures, and repair or replace the damaged parts in time.
Frame maintenance: Regularly check the wear and tear of the frame and chassis, and carry out anti-rust treatment and component replacement in time.
Brake system inspection: Regularly inspect all components of the braking system to ensure that the brakes are sensitive and the braking effect is good.
Tire maintenance: Regularly check the tire pressure and wear to ensure driving safety.
Lubrication and maintenance: Lubricate the moving parts regularly to ensure the smooth operation of all parts.

The 40 Ton Side Wall Trailers offers excellent performance and wide applicability, occupying an important position in the logistics and transportation industry. If you are interested in our products or have any questions, please feel free to contact us. We will provide you with high-quality services and solutions.
