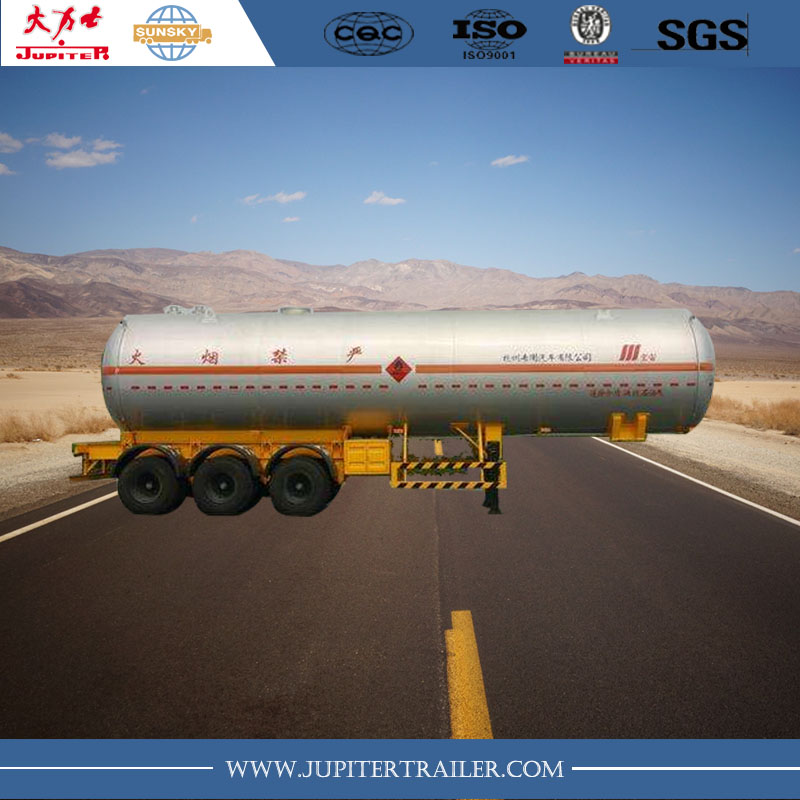

3 Axle LNG Tank Semi-Trailer With Vacuum Insulation

  • Item NO.:

    3 Axle LNG Tank Semi
  • Lead Time:

    20-30DAYS
  • Product Orgin:

    China
  • Brand:

    SUNSKY brand
  • Shipping Port:

    ANY PORT, CHINA
  • Payment:

    T/T, L/C At Sight
  • Price:

    $19000/22000
  • Market Price:

    $20000
  • Price Range:

    10-50/20000$
  • Color:

    OPTION
Contact Now
Description

3-Axle LNG Tank Semi-Trailer With Vacuum Insulation


Features:


‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑

1) Manufacturer, 32 years professional experience.
2) Two years guarantee term provided freely.

3) Export more than 1000 units to Africa, Southeastern Asia, and South America.
4) Products can be custom-made according to your design.


Specification:


‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑


3-Axle LNG Tank Semi-Trailer With Vacuum Insulation

Feature:

Carry Liquid Natural Gas

Dimension(L*W*H):

13150*2500*4100mm

Model

SS9403GDY

Overall Dimension(mm):

13000×2500×3900

Material:

Inner Tank16MnDR(Q345R)

Outer Skin16MnDR(Q345R)

Heat Insulation Type:

Vacuum Insulation

Curb Weight:

15,200kgs

Capacity(kgs):

27,000Kg(26CBM)

Tare weight(kgs):

42,200kgs

Kingpin

The world-famous JOST brand bolt-in/welded type 3.5”/2”

Landing gear

JOST brand two-speed manual operation 19”

Tire size

11.00R2011R22.512R22.5315/80R22.5385/65R22.5

Rim size

8.25*22.59.00*22.511.75*22.5

Axle

Original BPW-12T/ FUWA-13T

Leafs spring

Germany type with 12pcs of leafs spring/ Fuwa brand with 10 pcs of leafs spring/ Airbag suspension

Brake system

One unit WABCO RE 4 relay valve; four units T30/30 spring brake chamber; two units T30 spring brake chamber; two units reliable local brand 45L air tank; two units reliable local brand standard coppery air-connector.

Design Pressure:

2.28MPa

Pneumatic Test Pressure:

2.63MPa

Air Test Pressure:

2.28MPa

Design Temperature:

-167

Liquid-phase Inlet&Outlet:

DN50

Vapor-phase Inlet&Outlet:

DN40

Pipe of the main safety Valve:

2 x 2 safety valves set at 22.0 bar (319.0 PSI)

Pressure Gauge:

2 pressure gauges(front and rear),equipped with isolation valve

Pump System:

Difference Pressure: 3.5 bar

Flow rate: Ca 20,000 Kg/ h

Motor  : 220/ 380 V / 50 Hz + 60 Hz / 5.5 kw

We can build the trailers according to customer’s design and requirement




Production detail:

‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑






Producing process:

‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑




Loading and Packing:

‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑




Our advantage and ability:

‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑




What others we can supply:

‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑





FAQ:

‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑

1. Who are we?


Answer: We are a group company; we have three semi-trailer factories in china, one trading company in china and one company inHong Kong. We are focus on semi-trailer, trucks and parts.

2. Why choose us

Answer: 1) We have more than 30years experience in the trailer manufacturing. Our brand”SUNSKY” and”JUPITER” had got high reputation in china and overseas countries.

2) We have more than 20 engineers to design the kinds of trailers according to the requirement from you.

3) We had exported thousands of trailers to Africa, Middle East, Asia,Australia,South America and so on since 2006.

4) We are one of the biggest dealers of SINOTRUK HOWO truck in china, we can supply kinds of HOWO brand truck with competitive price.
